GLK960R2 Advertising Rear Service LED Display
GLK960R2 LED display measures 960mm x 960mm and uses 320x160mm modules. This LED display can be used for both indoor and outdoor applications, including fixed installations and rentals.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/1.jpg)
Quick Assembly
There are two quick locks on the top and left side of the cabinet to support quick installation.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/2.jpg)
Openable Back Cover
GLK960R2 LED display has a compact structure and the back cover can be opened quickly for maintenance operations.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/3-1.jpg)
Fast Heat Dissipation
GLK960R2 LED display is equipped with 4 wing fans on the back cover for quick heat dissipation.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/4.jpg)
Easy to Install
GLK960R2 LED display screen is easy to install and can be hung or stacked. It is suitable for fixed use and rental use.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/5.jpg)
Suitable For 320x160mm Size Modules
GLK960R2 LED displays standard size panel: 320x160mm. Standard LED screens can be quickly assembled and maintained.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/6.jpg)
IP65 Waterproof
The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, and damp-proof, bringing the ingress protection of the led display up to a new level.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/7.jpg)
Superb Display Effect
In commercial display applications, GLK960R2’s high brightness and high refresh rate bring users more realistic and vivid visual effects.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/8.jpg)
Application Scenarios

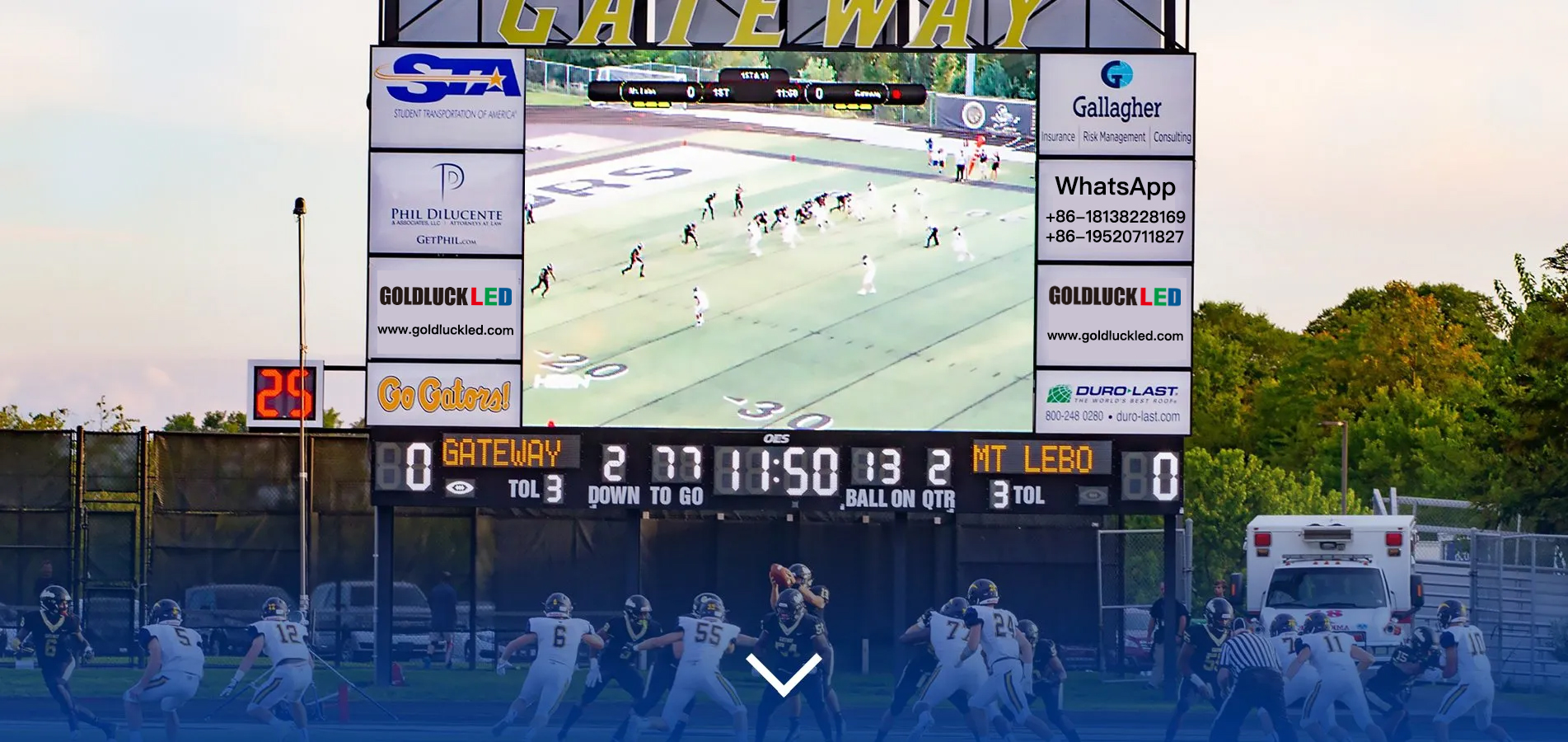

GLK960R2 LED display is suitable for a variety of application scenarios, such as commercial plazas, commercial event venues, stage events, commercial street advertising, etc.
![EA960R2 LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/9.jpg)
Pixel Pitch (mm) | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 (2S) | P10 (4S) | P10 (DIP) |
---|---|---|---|---|---|---|---|---|---|
Model | GLK960R2-OP2.5 | GLK960R2-OP3.076 | GLK960R2-OP4 | GLK960R2-OP5 | GLK960R2-OP6.67 | GLK960R2-OP8 | GLK960R2-OP10-2S | GLK960R2-OP10-4S | GLK960R2-OP10D |
Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | DIP346 |
Density (Pixels/㎡) | 160,000 | 105,625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 | 10,000 | 10,000 |
Module Resolution (Pixel) | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 | 32×16 | 32×16 |
Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
Driving Mode (Duty) | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 | 1/4 | 1/4 |
Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
Cabinet Weight (KG) | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 30 |
Brightness (CD/㎡) | 5,000 | 5,000 | 5,500 | 5,500 | 6,000 | 5,500 | 5,800 | 4,500 | 8,000 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 690 | 786 | 909 | 836 | 892 | 600 | 850 | 540 | 520 |
Avg. Power Consumption (W/㎡) | 230 | 262 | 303 | 280 | 298 | 200 | 285 | 180 | 175 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Pixel Pitch (mm) | P2.5 | P3.076 | P4 | P5 |
---|---|---|---|---|
Model | GLK960R2-iP2.5 | GLK960R2-iP3.076 | GLK960R2-iP4 | GLK960R2-iP5 |
Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
Density (Pixels/㎡) | 160,000 | 105,625 | 62,500 | 40,000 |
Module Resolution (Pixels) | 128×64 | 104×52 | 80×40 | 64×32 |
Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
Driving Mode (Duty) | 1/32 | 1/26 | 1/20 | 1/16 |
Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 |
Cabinet Weight (KG) | 25 | 25 | 25 | 25 |
Brightness (CD/㎡) | 800 | 800 | 700 | 700 |
Viewing Angle (°) | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 457 | 413 | 351 | 312 |
Avg. Power Consumption (W/㎡) | 153 | 138 | 117 | 104 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 3,840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 |
