GLK640DF Indoor Double Face LED Screen
GLK640DF is an indoor double-sided LED screen specially designed for hanging purposes. Whether you’re viewing the screen from the front or the back, you can clearly see what’s displayed. Both sides support front service, saving maintenance time and costs. etc.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/1-5.jpg)
Double Face LED Display
Double-sided display, the screen content can be seen from both front and back directions.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/2-4.jpg)
Double Face Front Service Design
With the front maintenance design, the suction cup easily maintains the LED modules on both sides of the magnetic field.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/3-5.jpg)
Quick Install
GLK640DF LED display is equipped with a quick-lock design, making installation and assembly easier.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/4-4.jpg)
Perfect Structure Design
GLK640DF LED display adopts a high-standard industry-leading design, and the die-cast aluminum box bottom shell is high-end and atmospheric.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/5-4.jpg)
Suitable For 320x160mm Size Modules
GLK640DF indoor LED display adopts a standard size panel of 320x160mm, which can be easily assembled and maintained even by a novice.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/6-4.jpg)
Hanging Installation
The hanging design of double face display makes it ideal for indoor venues, especially for advertising, signage, displays, etc.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/7-4.jpg)

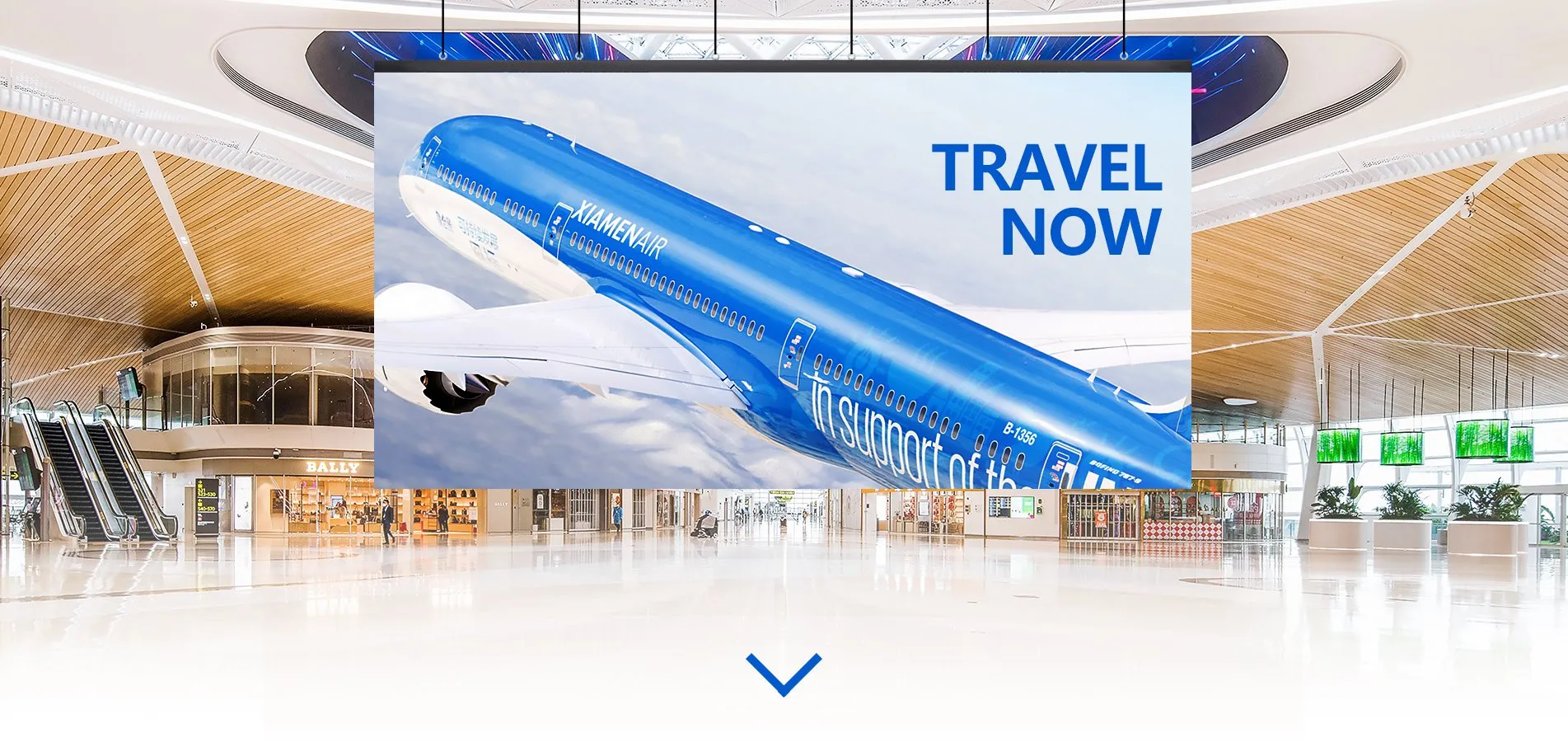

Application Scenario
GLK640DF double face LED display has a wide range of uses and can be used in many scenarios such as airports, commercial centers, supermarkets, etc.
![EA640DF LED Display](https://www.goldluckled.com/wp-content/uploads/2023/09/8-4.jpg)
Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3.076 | P4 |
---|---|---|---|---|---|---|---|
Model | GLK640DF-P1.25 | GLK640DF-P1.53 | GLK640DF-P1.86 | GLK640DF-P2 | GLK640DF-P2.5 | GLK640DF-P3.076 | GLK640DF-P4 |
Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 | 105,688 | 62,500 |
Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 | 104×52 | 80×40 |
Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
Driving Mode (Duty) | 1/32 | 1/26 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
Cabinet Size (mm) | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 |
Cabinet Weight (KG) | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 | 800 | 700 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 | 413 | 351 |
Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 | 138 | 117 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | 1920~3,840 | 1920~3,840 | 1920~3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
MTBF(hours) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
