GLK45F Outdoor Front Service LED Display
GLK45F LED display board uses dual-maintenance 45° beveled LED modules and is equipped with an IP65 waterproof design. The 45° beveled cabinet can be customized for 90° right-angle scenes, making it an ideal outdoor LED display.
Front and Rear Service Design
Dual service mode of front and rear design to save you Maintenance Costs. The LED panel can be assembled and disassembled easily and quickly.
45° Beveled Cabinet
GLK45F LED display adopts 45° LED modules, suitable for customizing 45° beveled cabinets.
Easy to Install
GLK45F display screen can be quickly spliced through connecting pieces, making it easy to operate and saving the operator’s time.

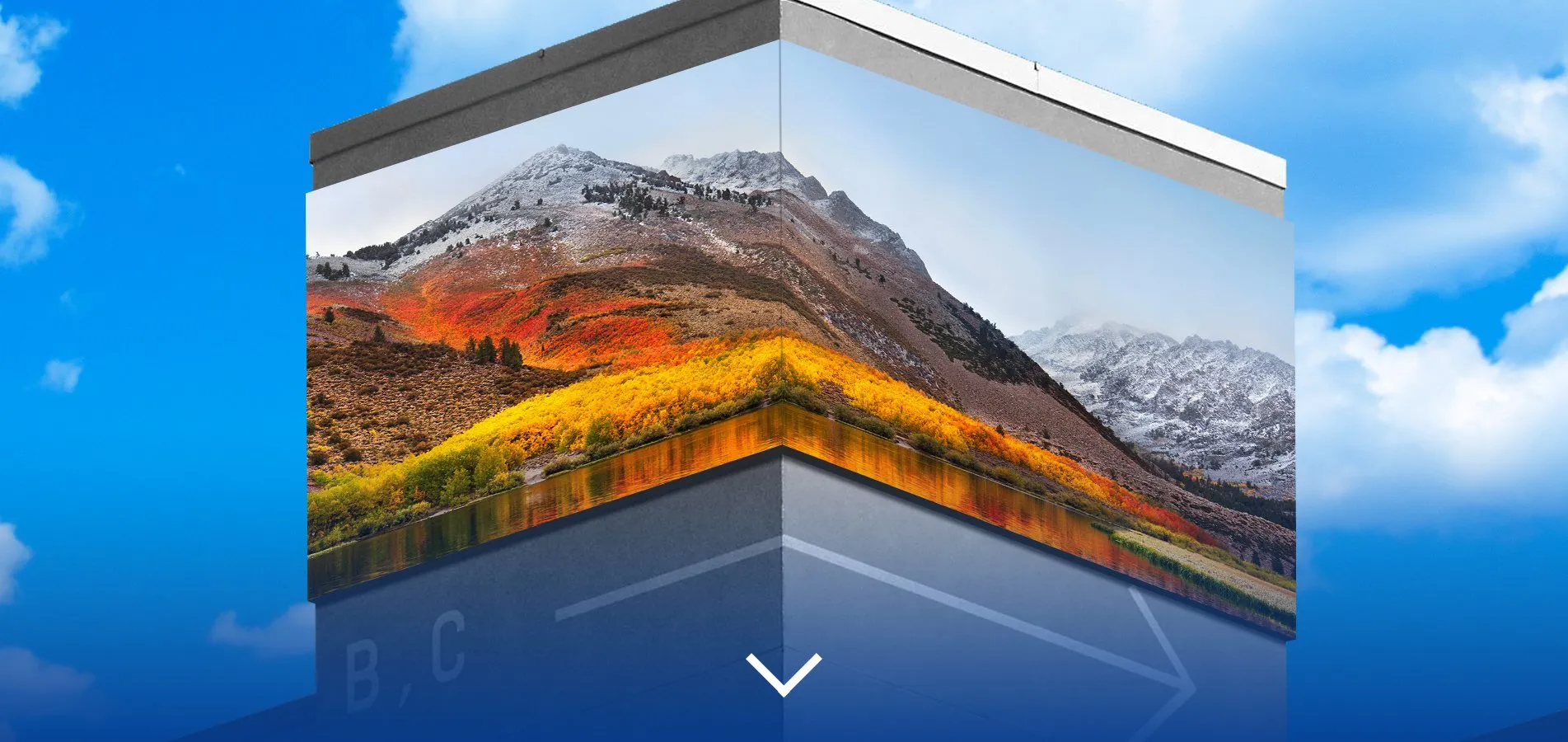

Right Angle Installation
GLK45F LED display is easy to install and can be stacked or suspended. Customized 45° beveled edge cabinet supports the right-angle installation.
Rear Power Box
The power box supports post-maintenance, which is convenient and quick to maintain.
IP65 Waterproof
The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, and damp-proof, bringing the ingress protection of the led display up to a new level.
Superb Display Effect
In commercial display applications, GLK45F’s high brightness and high refresh rate bring users more realistic and vivid visual effects.
Application Scenarios
GLK45F LED display is suitable for a variety of application scenarios, such as commercial plazas, commercial activity venues, billboards, etc.
| Pixel Pitch (mm) | P3.91 | P4.81 | P4 | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|---|---|
| Model | GLK45F-P3.91 | GLK45F-P4.81 | GLK45F-P4 | GLK45F-P5 | GLK45F-P6.67 | GLK45F-P8 | GLK45F-P10 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 65,526 | 43,264 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixel) | 64×64 | 52×52 | 80×80 | 64×64 | 48×48 | 40×40 | 32×32 |
| Module Size (mm) | 250×250 | 250×250 | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 |
| Driving Mode (Duty) | 1/8 | 1/6 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 1000×1000 | 1000×1000 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 26 | 26 | 24 | 24 | 22 | 24 | 24 |
| Brightness (CD/㎡) | 6,000 | 5,500 | 5,500 | 5,000 | 5,500 | 5,000 | 6,000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 690 | 786 | 909 | 836 | 892 | 600 | 850 |
| Avg. Power Consumption (W/㎡) | 230 | 262 | 303 | 280 | 298 | 200 | 285 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
