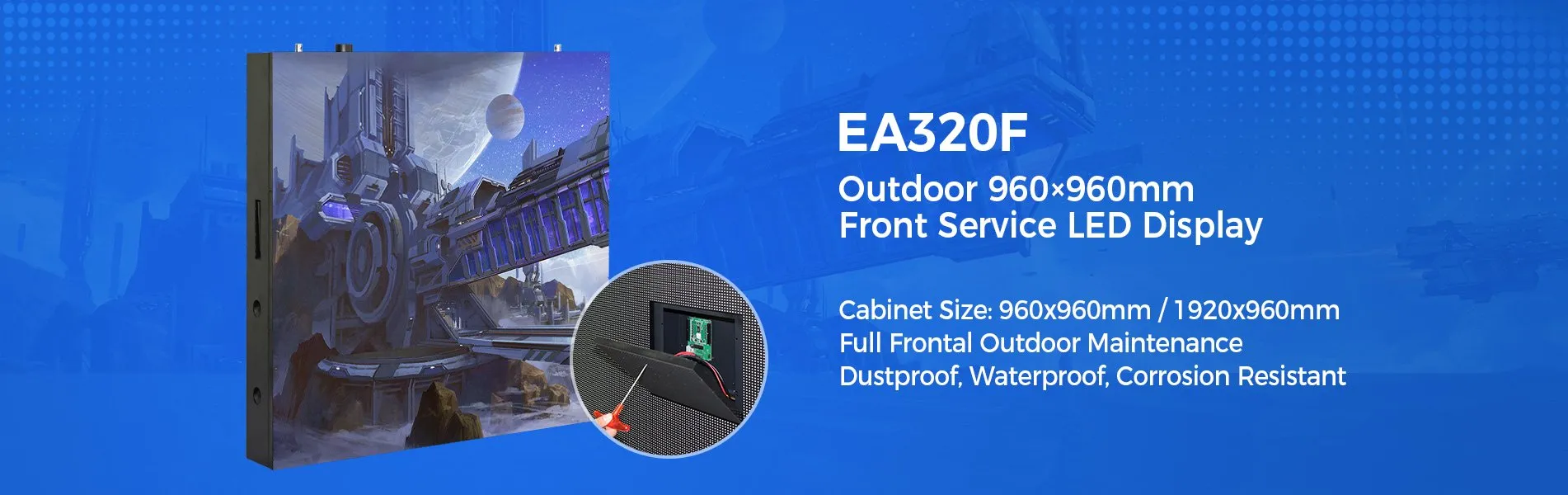

GLK320F Series Outdoor Front Service LED Display
The SMD Encapsulation technology with high brightness makes the goldluckled Outdoor Fixed LED display
has a Vivid and smoother pictures when in use.
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/1-1.jpg)
Full Frontal Outdoor Maintenance
Outdoor LED modules, power supplies, receiver cards, hub cards,
and cables are all served at the front end.
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/%E6%88%B7%E5%A4%96%E5%89%8D%E7%BB%B4%E6%8A%A4.jpg)
High Efficiency Cooling
There are 3 aerofoil fans in each cabinet to make the Goldluck Outdoor Fixed LED display cool immediately.
ventilation volume is 6.6 cubic meters per minute, air circulation is 25 times every minute inside the cabinet
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/2-1.jpg)
960x960mm Standard Size
The GLK320F series LED cabinet weighs only 40kg and has a thickness of only 150mm. The cabinet is made of aluminum alloy,
which makes it have higher strength. The compact design of the LED display cabinet makes it very easy to install.
In addition, the Quick Lock feature does not require any technical skills to install and uninstall.
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/%E6%88%B7%E5%A4%96%E5%89%8D%E7%BB%B4%E6%8A%A48-1.jpg)
All Weather Outdoor Work
Using Goldluckled’s unique protection technology, the display can work normally under any weather conditions!
A high level of protection is guaranteed, durable, reliable, anti-ultraviolet, and stable.
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/%E6%88%B7%E5%A4%96%E5%89%8D%E7%BB%B4%E6%8A%A45-1.jpg)
IP65 Dustproof And Waterproof
IP65 dustproof and waterproof, can resist some bad weather in outdoor activities.
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/%E6%88%B7%E5%A4%96%E5%89%8D%E7%BB%B4%E6%8A%A410-2.jpg)
Wide Viewing Angle
The viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle gives you the largest screen viewing area. It offers you clear and natural images in all directions.
![EA320F LED Display](https://www.eagerled.com/wp-content/uploads/2019/10/EA320F-960x960%E6%88%B7%E5%A4%96%E5%89%8D%E7%BB%B4%E6%8A%A4-1.jpg)
Pixel Pitch (mm) | P4 | P5 | 5.33 | P6.67 | P8 | P10 | P10 (DIP) | P16(DIP) |
---|---|---|---|---|---|---|---|---|
Model | GLK320F-P4 | GLK320F-P5 | GLK320F-P5.33 | GLK320F-P6.67 | GLK320F-P8 | GLK320F-P10 | GLK320F-P10D | GLK320F-P16D |
Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 | DIP346 | DIP346 |
Density (Pixels/㎡) | 62,500 | 40,000 | 35,156 | 22,498 | 15,625 | 10,000 | 10,000 | 3,906 |
Module Resolution (Pixel) | 80×80 | 64×64 | 60×60 | 48×48 | 40×40 | 32×32 | 32×32 | 20×20 |
Module Size (mm) | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 |
Driving Mode (Duty) | 1/10 | 1/8 | 1/8 | 1/6 | 1/5 | 1/2 | 1/4 | 1/1 |
Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
Cabinet Weight (KG) | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 |
Brightness (CD/㎡) | 5,500 | 5,000 | 5,000 | 5,500 | 5,000 | 6,000 | 9,000 | 1,0000 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 806 | 732 | 732 | 700 | 900 | 576 | 610 | 540 |
Avg. Power Consumption (W/㎡) | 270 | 245 | 245 | 230 | 300 | 200 | 205 | 185 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 1920/ 3840 | 1920/ 3840 | 1920/ 3840 | 1920/ 3840 | 1920/ 3840 | 1920/ 3840 | 1920 | 1920 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Protecting Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Pixel Pitch (mm) | P3.33 | P4 | P5 | P6.67 | P8 | P10 |
---|---|---|---|---|---|---|
Model | GLK320F-P3.33(320*160) | GLK320F-P4(320*160) | GLK320F-P5(320*160) | GLK320F-P6.67(320*160) | GLK320F-P8(320*160) | GLK320F-P10(320*160) |
Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
Density (Pixels/㎡) | 90,000 | 62,500 | 40,000 | 22,498 | 15,625 | 10,000 |
Module Resolution (Pixel) | 96×48 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
Driving Mode (Duty) | 1/12 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
Cabinet Weight (KG) | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 |
Brightness (CD/㎡) | 5,500 | 5,500 | 5,500 | 5,500 | 5,000 | 6,000 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 806 | 806 | 732 | 700 | 900 | 576 |
Avg. Power Consumption (W/㎡) | 270 | 270 | 245 | 230 | 300 | 200 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 1920/ 3840 | 1920/ 3840 | 1920/ 3840 | 1920/ 3840 | 1920 | 1920 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Protecting Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
