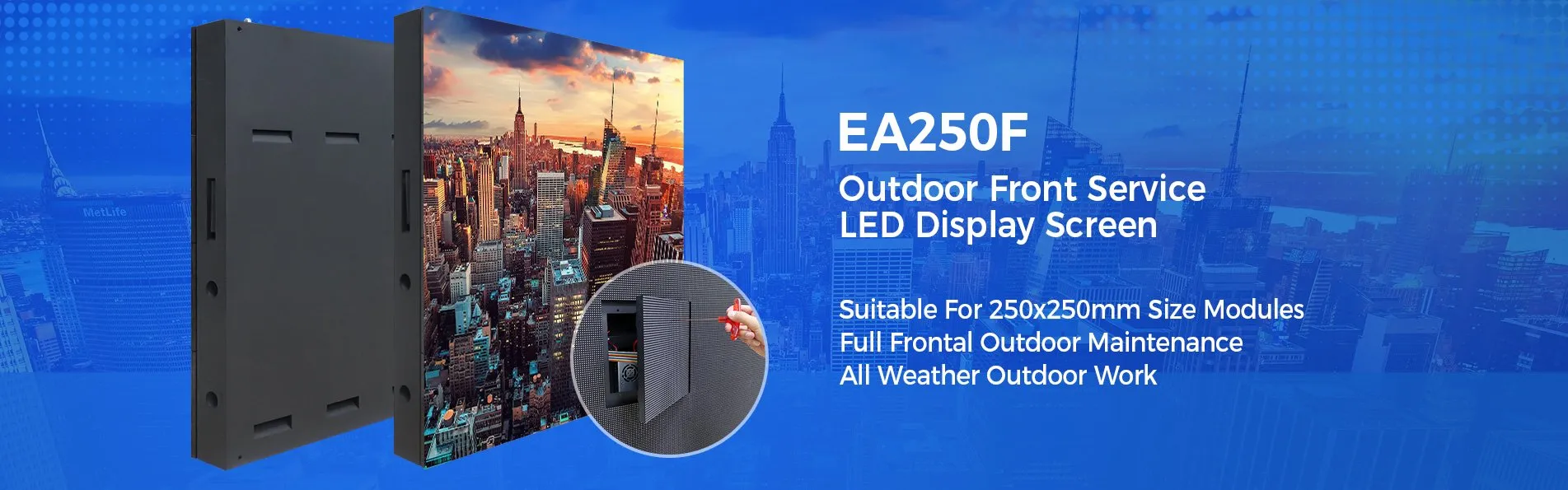

GLK250F Series Outdoor Front Service LED Display
The SMD Encapsulation technology with high brightness makes the goldluckled Outdoor Fixed LED display
has a Vivid and smoother pictures when in use.
Contact Us For More Information
Full Frontal Outdoor Maintenance
Outdoor LED modules, power supplies, receiver cards, hub cards,
and cables are all served at the front end.
Contact Us For More Information
All Weather Outdoor Work
Using Goldluckled’s unique protection technology, the display can work normally under any weather conditions!
A high level of protection is guaranteed, durable, reliable, anti-ultraviolet, and stable.
Contact Us For More Information
Suitable For 250x250mm Size Modules
Standard LED screens can be quickly assembled and maintained. It is also convenient to change the pixel pitch
by simply replacing the modules as they have the same module size and structure.
Contact Us For More Information
Outdoor Front Service LED Display GLK250F Series Parameter
| Pixel Pitch (mm) | P3.12 | P3.91 | P4.81 | P5.95 | P6.94 | P8.33 | P10.41 |
|---|---|---|---|---|---|---|---|
| Model | GLK250F-P3.12 | GLK250F-P3.91 | GLK250F-P4.81 | GLK250F-P5.95 | GLK250F-P6.94 | GLK250F-P8.33 | GLK250F-P10.41 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 102,400 | 65,536 | 43,264 | 28,224 | 20,736 | 14,400 | 9,216 |
| Module Resolution (Pixel) | 80×80 | 64×64 | 52×52 | 42×42 | 36×36 | 30×30 | 24×24 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/10 | 1/8 | 1/6 | 1/6 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 1000×500 | 1000×500 | 1000×500 | 1000×500 | 1000×500 | 1000×500 | 1000×500 |
| Cabinet Weight (KG) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Brightness (CD/㎡) | 6,500 | 6,000 | 5,500 | 6,000 | 6,000 | 6,000 | 6,000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 648 | 648 | 560 | 560 | 700 | 900 | 576 |
| Avg. Power Consumption (W/㎡) | 216 | 216 | 190 | 190 | 230 | 300 | 200 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
