1600×900mm Stadium Perimeter LED Screen

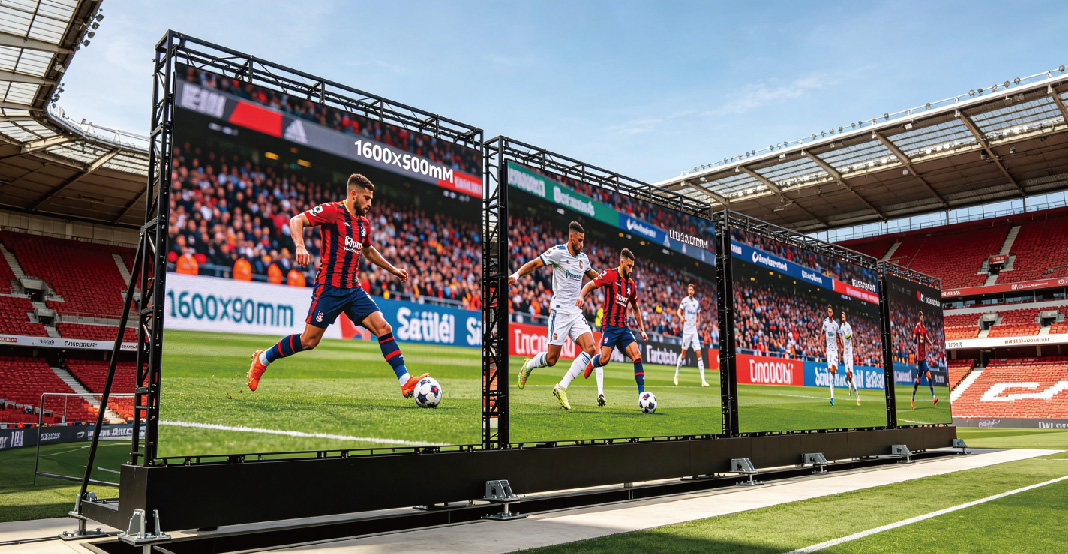

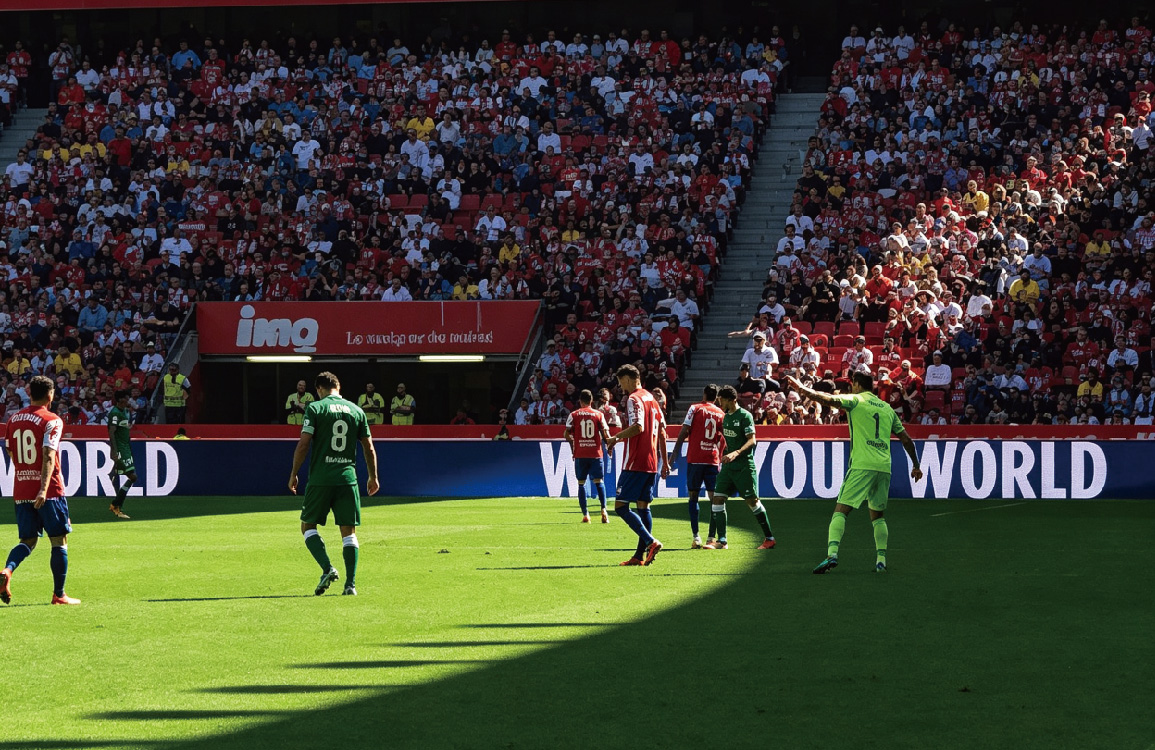

Stadium perimeter LED Screens are professional LED displays around stadiums. 90-degree upright support frame, soft mask protection,
High Protection Chassis Panel Design, Energy Saving LED Display, Ultra-low heat and power consumption, saving and excellent visual experience.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-1-1.jpg)
Front and Rear Service
Dual service mode of front and rear design to save you Maintenance Costs.
The LED panel can be assembled and disassembled easily and quickly.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-11.jpg)
Soft mask protection
Soft mask protection, athletes, and LED screens are perfectly protected
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-5-1.jpg)
Energy saving
Die-cast aluminum chassis, long service life, good heat dissipation performance,
more energy-saving than traditional screens, greatly reducing the operating cost of the screen.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-6-1.jpg)
400*300mm Aluminum LED Panel
EA1600SP Series LED display adopts an Aluminum Chasis design for the panel.
Aluminum chassis adopt an edge lock without screwing design. full sealed design, to protect its internal components.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-7-1.jpg)
High Protective Performance
Aluminum material LED module, high-temperature durability, fast heat dissipation.
The whole product can Reach 5VB fireproofing level.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-8-1.jpg)
90 Degrees Upright
The new court base design, a 90-degree upright non-adjustable support frame, ensures the audience’s viewing angle
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-3-1.jpg)

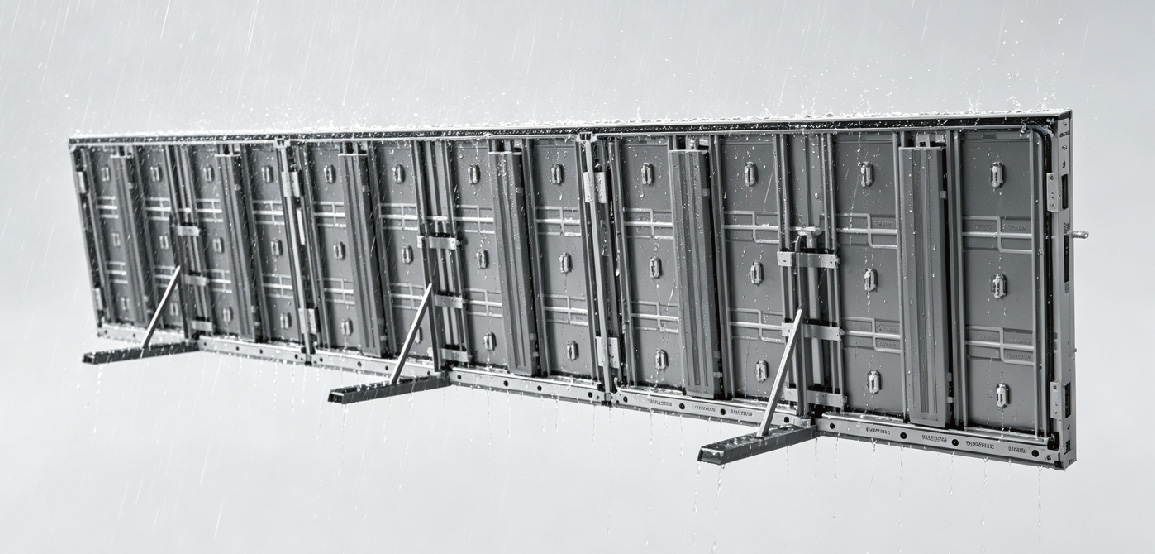

Support Frame Rotatable
The support frame of the cabinet body can be hidden after being rotated.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-4-1.jpg)
Dedicated Cabinet Design
LED display screen is compact in structure and easy to install without gaps.
The humanized handle design makes it easier for you to move the cabinet.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-9-1.jpg)
IP66 Dustproof, Waterproof
It’s for outdoor applications with high waterproof level and dust-proof level. It can resist some bad weather during outdoor events.
![EA1600SP Outdoor Stadium Perimeter LED Display Screen](https://www.goldluckled.com/wp-content/uploads/2022/12/EA1600SP-10-2.jpg)
Pixel Pitch | P6.67 | P8.33 | P10 |
---|---|---|---|
Model | GLK1600SP-P6.67 | GLK1600SP-P8.33 | GLK1600SP-P10 |
Pixel Configuration | SMD2727 | SMD3535 | SMD3535 |
Density (Pixels/㎡) | 22,500 | 14,400 | 10,000 |
Module Resolution (Pixel) | 60×45 | 48×36 | 40×30 |
Module Size (mm) | 400×300 | 400×300 | 400×300 |
Driving Mode (Duty) | 1/6 | 1/4 | 1/3 |
Cabinet Size (mm) | 1600×900 | 1600×900 | 1600×900 |
Cabinet Weight (KG) | ≈52 | ≈52 | ≈52 |
Brightness (CD/㎡) | 6500 | 6500 | 6500 |
Viewing Angle (°) | 170(H),110(V) | 170(H),110(V) | 170(H),110(V) |
Gray Grade (Bits) | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 630 | 550 | 550 |
Avg. Power Consumption (W/㎡) | 250 | 200 | 200 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
Protecting Grade | IP66 | IP66 | IP66 |
