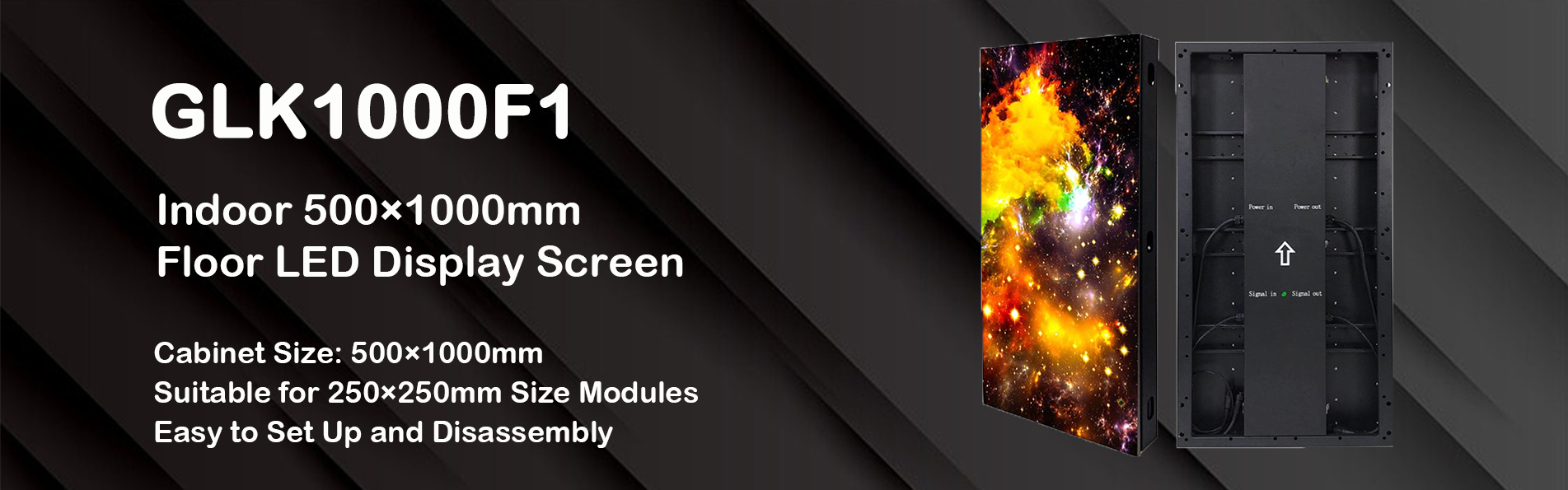

GLK-Floor Indoor 500x1000mm Floor LED Display
Compared with the traditional LED display, the floor LED display adopts a special design in terms of load-bearing,
protection performance, and heat dissipation performance.
Its purpose is to make the floor tile screen adaptable to high-intensity stepping and long-term stable operation.
Module with Anti-scratch Mask
The cabinet is suitable for modules of 250x250mm, and the mask is convexly designed to enhance
the wear resistance of the surface of the module, and the protective rubber ring increases waterproof performance
Front Service
With magnetic design, supports front service, saving your time and energy to finish the maintenance
Wide Application
Interactive Floor Displays are widely used in bars, such as Dance Floor LED Display, theaters, hotels, stage performances,
concert halls, shopping malls, and other places.
| Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 | P5.2 | P6.25 |
|---|---|---|---|---|---|
| Model | GLK-Floor-P2.97 | GLK-Floor-P3.91 | GLK-Floor-P4.81 | GLK-Floor-P5.2 | GLK-Floor-P6.25 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 | 36864 | 25600 |
| Module Resolution (Pixel) | 84×84 | 64×64 | 52×52 | 48×48 | 40×40 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/21 | 1/16 | 1/13 | 1/12 | 1/10 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 25 | 25 | 25 | 25 | 25 |
| Brightness (CD/㎡) | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 |
| Viewing Angle (°) | 110 | 110 | 110 | 110 | 110 |
| Gray Grade (Bits) | 16 | 16 | 16 | 16 | 16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | ≤800 | ≤800 | ≤800 | ≤800 | ≤800 |
| Avg. Power Consumption (W/㎡) | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 |
| Frame Frequency (Hz) | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
| Refresh Frequency (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP66(front), IP65(rear) | IP66(front), IP65(rear) | IP66(front), IP65(rear) | IP66(front), IP65(rear) | IP66(front), IP65(rear) |
