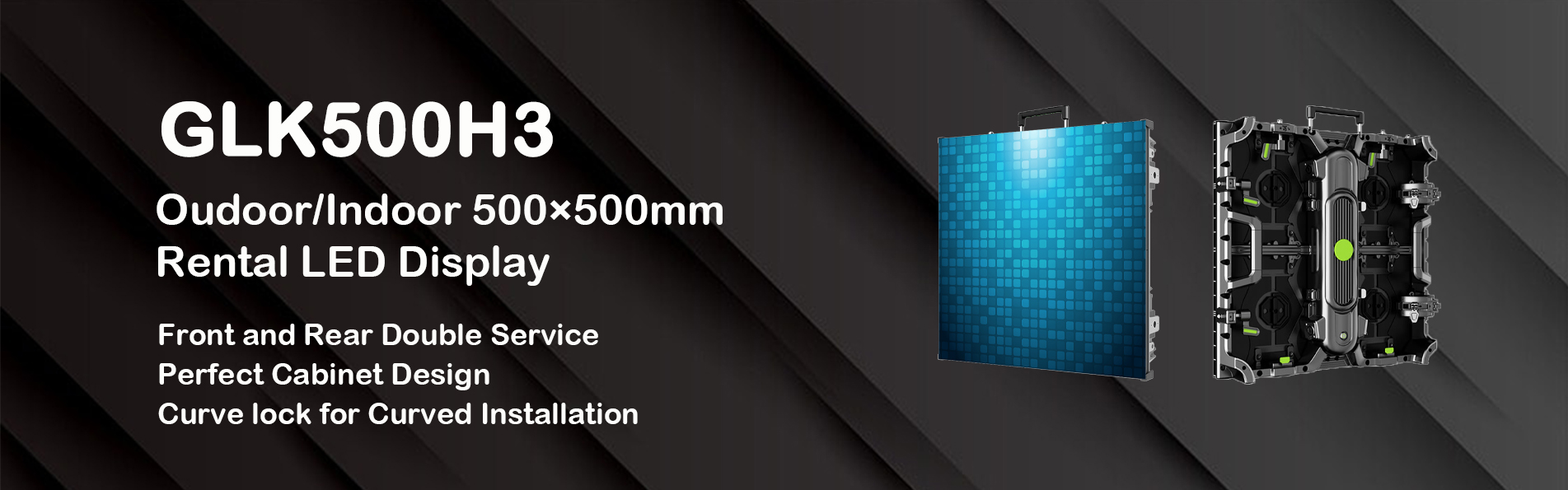

500x500mm Rental LED Display EA500H3 Series
Ultra-thin Design with Detachable back cover, High Precision Curve Lock for Curved Installation, Corner Protector for LED,
Magnetic Module, High Waterproof, and Modules are arranged regardless of left and right
Front and Rear Service Design
GLK500H3 series LED display adopts a Magnet Adsorption LED Panel to make the cabinet accessed with frontal & rear design. easy installation for LED panels.
High Precision Curve Lock
Adopt high-precision curve lock design (-5° to +5°), rotation control, more accurate,
easy to use, and quickly adjust the degree of curve.
Lightweight and Thin
GLK500H3 series LED display cabinet weighs 7KG/pc, easy to operate: one person to install, disassemble, and maintain.
Wide Viewing Angle
The viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle gives you the largest screen viewing area. It offers you clear and natural images in all directions.
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|
| Model | GLK500H3-OP2.6 | GLK500H3-OP2.97 | GLK500H3-OP3.91 | GLK500H3-OP4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 4200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 |
|---|---|---|---|
| Model | GLK500H3-iP2.6 | GLK500H3-iP2.97 | GLK500H3-iP3.91 |
| Pixel Configuration | SMD1515 | SMD2121 | SMD2020 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7 | 7 | 7 |
| Brightness (CD/㎡) | 750 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
