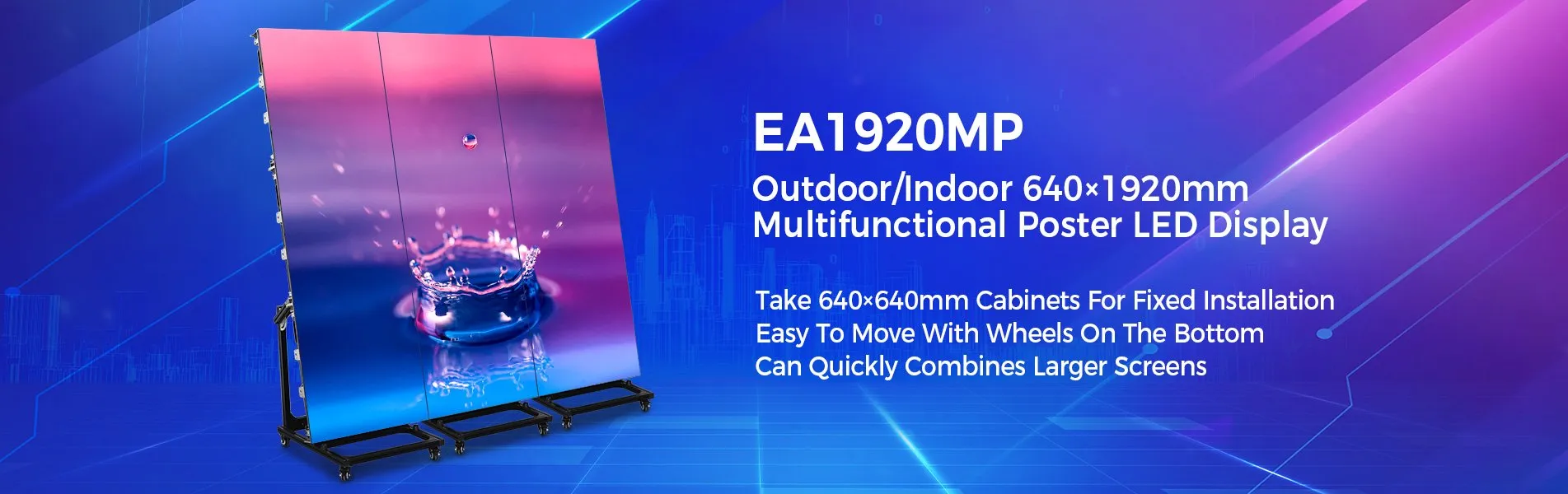

Multifunctional Rear Service Poster LED Display GLK1920MP Series
This poster display stand is equipped with our newly designed stand.
We can use the 640x640mm die-casting cabinet for fixed installation of rear maintenance screens or rental hanging screens.
![EA1920MP Poster LED Display](https://www.goldluckled.com/wp-content/uploads/2020/06/1-2.jpg)
Quick Assembly
Three 640×640 rental screens or fixed screens can be quickly assembled into
a multi-functional poster screen.
![EA1920MP Poster LED Display](https://www.goldluckled.com/wp-content/uploads/2020/06/2-4.jpg)
Excellent Heat Dissipation
Can easily replace the controller with an advanced one according to the resolution of the combined larger screen.
![3 EA1920MP Poster LED Display](https://www.goldluckled.com/wp-content/uploads/2020/06/3-2.jpg)
Adjustable Bracket
The GLK1920MP series multifunctional poster LED screen stand can be easily adjusted from 80 degrees to 90 degrees,
meeting various viewing angle requirements.
![EA1920MP Poster LED Display](https://www.goldluckled.com/wp-content/uploads/2020/06/4-1.jpg)
Easy to Move with Wheels
4 wheels are located at the bottom of the multi-function poster screen bracket, easy to move.
![EA1920MP Poster LED Display](https://www.goldluckled.com/wp-content/uploads/2020/06/5-3.jpg)
Quickly Combine Larger Screens
The multi-function poster screen can be carried out Single Poster Screens Can Be Used independently.
Multiple single poster screens can be combined into a larger screen quickly.
![EA1920MP Poster LED Display](https://www.goldluckled.com/wp-content/uploads/2020/06/6-1.jpg)
Pixel Pitch (mm) | P2.5 | P3.076 | P4 |
---|---|---|---|
Model | GLK1920MP-OP2.5 | GLK1920MP-OP3.076 | GLK1920MP-OP4 |
Pixel Configuration | SMD1415 | SMD1415 | SMD1921 |
Density (Pixels/㎡) | 160,000 | 105,625 | 62,500 |
Module Resolution (Pixel) | 128×64 | 104×52 | 80×40 |
Module Size (mm) | 320×160 | 320×160 | 320×160 |
Driving Mode (Duty) | 1/16 | 1/13 | 1/10 |
Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 |
Screen Dimension (Structure included) | 650x640x2040 | 650x640x2040 | 650x640x2040 |
Screen Resolution | 256×768 | 208×624 | 160×480 |
Cabinet Weight (KG) | 47 | 47 | 47 |
Adjustable Angle of Bracket (°) | From 80 to 90 | From 80 to 90 | From 80 to 90 |
Brightness (CD/㎡) | 5,000 | 5,000 | 5,500 |
Viewing Angle (°) | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 648 | 786 | 909 |
Avg. Power Consumption (W/㎡) | 216 | 262 | 303 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 3840 | 3840 | 1920/3840 |
Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
---|---|---|---|---|---|
Model | GLK1920MP-iP1.25 | GLK1920MP-iP1.53 | GLK1920MP-iP1.86 | GLK1920MP-iP2 | GLK1920MP-iP2.5 |
Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD1515 |
Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
Driving Mode (Duty) | 1/32 | 1/26 | 1/43 | 1/40 | 1/32 |
Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
Screen Dimension (Structure included) | 650x640x2040 | 650x640x2040 | 650x640x2040 | 650x640x2040 | 650x640x2040 |
Screen Resolution | 512×1536 | 416×1248 | 344×1032 | 320×960 | 256×768 |
Cabinet Weight (KG) | 43 | 43 | 43 | 43 | 43 |
Adjustable Angle of Bracket (°) | From 80 to 90 | From 80 to 90 | From 80 to 90 | From 80 to 90 | From 80 to 90 |
Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 413 | 413 | 413 | 439 | 457 |
Avg. Power Consumption (W/㎡) | 138 | 138 | 138 | 150 | 153 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 3840 | 3840 | 3840 | 3840 | 1920/3840 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
